Wireless Guest Coaster Pager Transmitter Call For Restaurant KL-QC01

FOB Reference Price:Get Latest Price
  • 2 - 9 Sets
    $96.00
  • >=10 Sets
    $90.00
Samples:
$96.00 /Set | 1 Set (Min. Order) | Buy Samples
Shipping:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Sets) 1 - 50 51 - 1000 1001 - 2000 >2000
Est. Time(days) 7 10 12 Negotiable
Customization:
Customized logo (Min. Order: 300 Sets)
Customized packaging (Min. Order: 300 Sets)

More

Graphic customization (Min. Order: 300 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
KELVIN
Model Number:
KL-QC01
Name:
Restaurant Queue Paging Waiter System
Color:
Purple
Application:
restaurant /hospital/bank etc
Working voltage:
:3.7v
Input:
DC12V/2A
Frequency:
433mhz / 315mhz
Standby Power:
<300mW
Transmitting power:
25dBm
Range:
800m
Size:
235*155*35mm
Supply Ability
Supply Ability:
100000 Set/Sets per Month
Packaging & Delivery
Packaging Details
330*320*55mm individual packs
Port
Shenzhen
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 50 51 - 1000 1001 - 2000 >2000
Est. Time(days) 7 10 12 To be negotiated
Video Description
Product Description

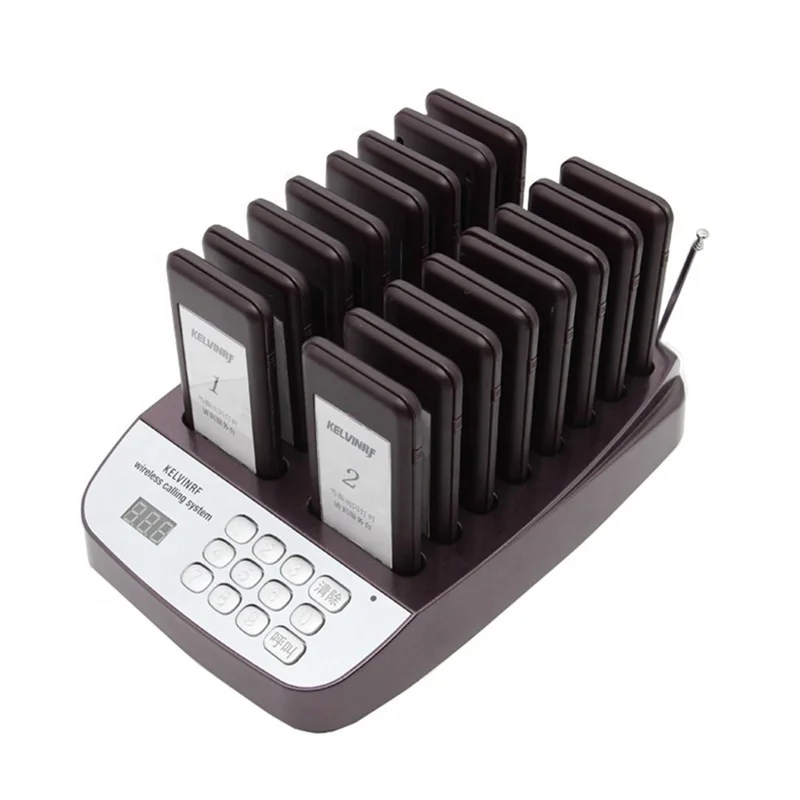

Restaurant Queuing Call System Coaster Wireless Pager System

KL-QC01 is a wireless waiting system which is mainly used in restaurant, dessert shops, hospitals, auto 4S shops and so on. It can greatly improve work efficiency and enhance user experience. The KLY-68 adopts an advanced microprocessor chip to make its performance stable and reliable.

Advantage

1) Low power consumption.
2) Longer standby time up to 6 hours
3) Pairing vast sub-machines up to 998 pieces
4) Long distance more than 800m
5) Fastly response
Parameter
Item
Host
Working voltage
DC5V/5A
Frequency
433MHz
Standby Current
24±5mA
Coding Type
Learning Code(ASK)
Emission Current
100±30mA
Paired submachine
Max 998pcs
Material
ABC
Size
150*300*33mm
Item

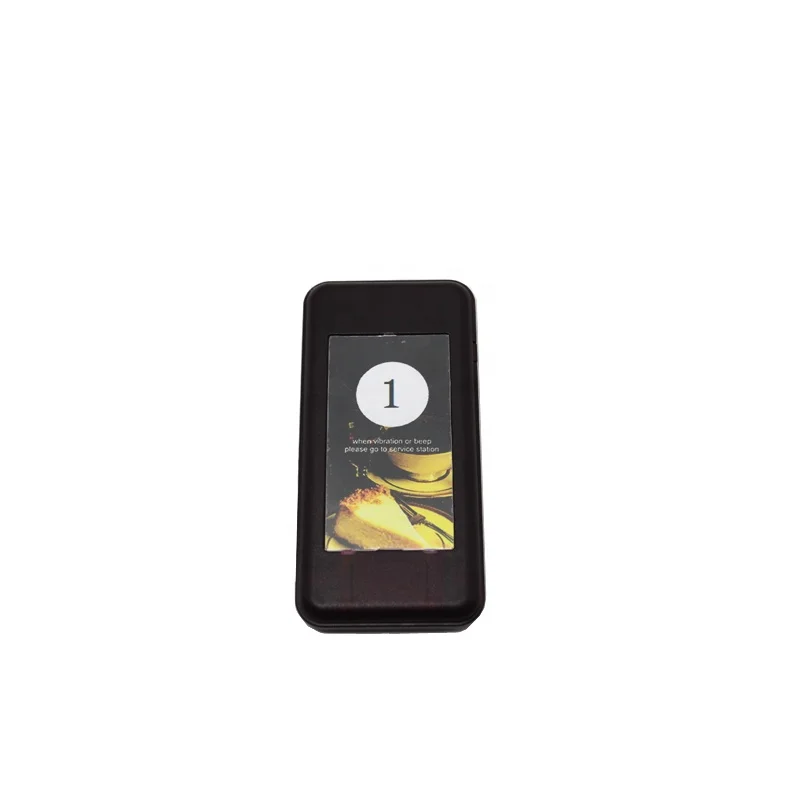

Pager
Working voltage
3.7V(200mAh ploymer battery)
Standby Current
10±5mA
Receiver Sensitivity
-107±2dBm
Work Current
75±10mA(Vibrate)
100±20mA(Vibrate + Beep)
Battery Capacitance
360mAh Lithium
Frequency
433MHz
Size
49*101*10.5mm

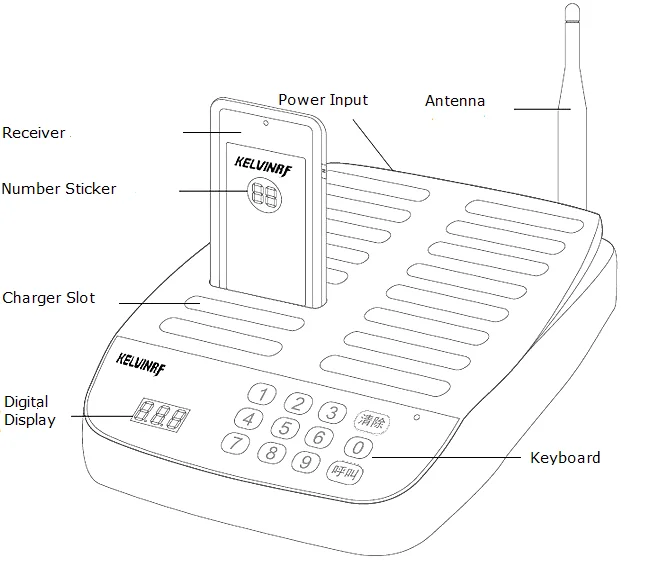

Diagram
Instructions

1.Use operation

First, connect the host to power source by adapter, then insert the receiver into the charger slot. Please program after 10min
charging at least.

2.Program

Press button A and button B at same time, LED2 and LED5 will be on. Then input number on the keyboard, and press “CALL”. The
receiver beeps twice to indicate program is done..

3.Change Receiver’s Number

Repeat step 2, the original number will be replaced with new number. Previous number will be cleared.

4.Remind Time Setting

Button B is used to set remind time. Every short press this button will turn on a LED, and remind time increase 7s, up to 35s.

5.Receiver Power ON/OFF

Hold button B till the receiver vibrates and indicator off, then release, receiver is power off. Press button B or insert the
receiver to host both can power on again.

6.Working State of Receiver

Power Off State: All LED off.
Charging State: LED1 always on. Charging indicator is on when battery is full.
Standby State: LED1 flashes.
Reminding State: 5 LEDs flash, receiver vibrates and beeps. Press button A to stand by again.
