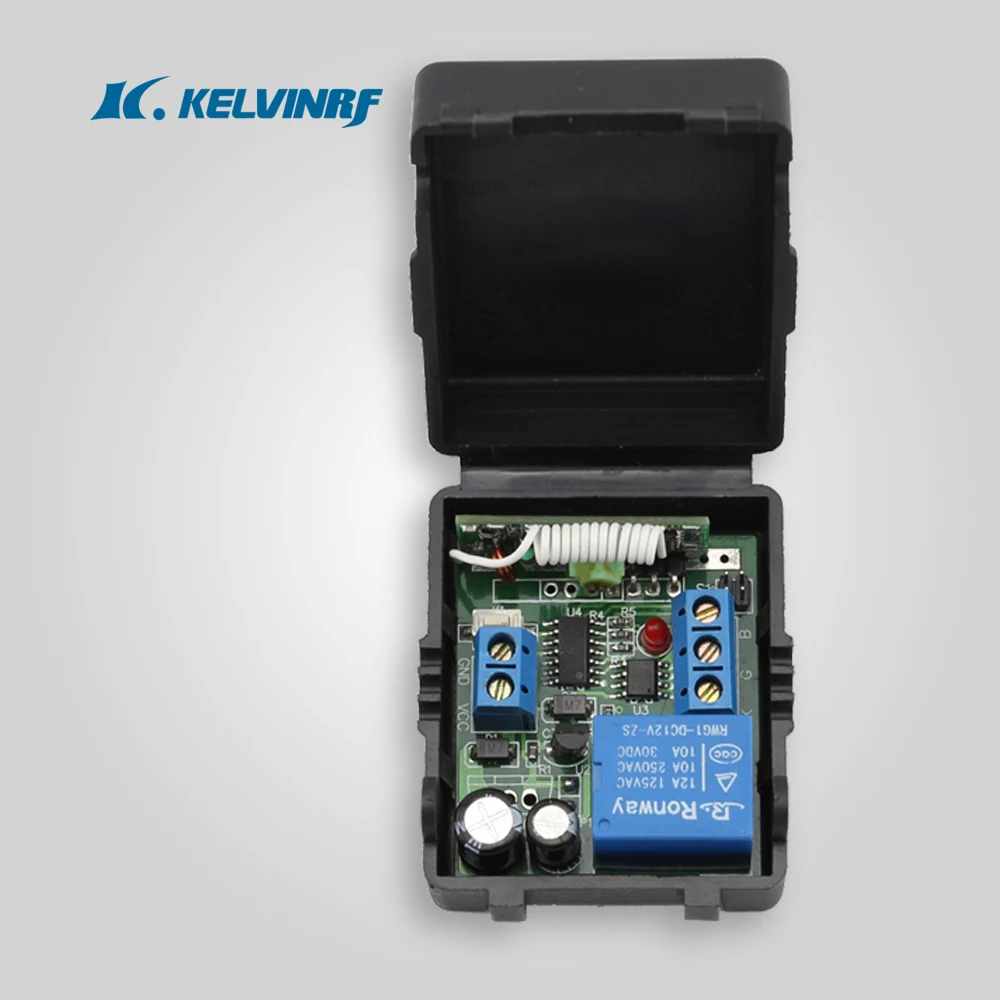

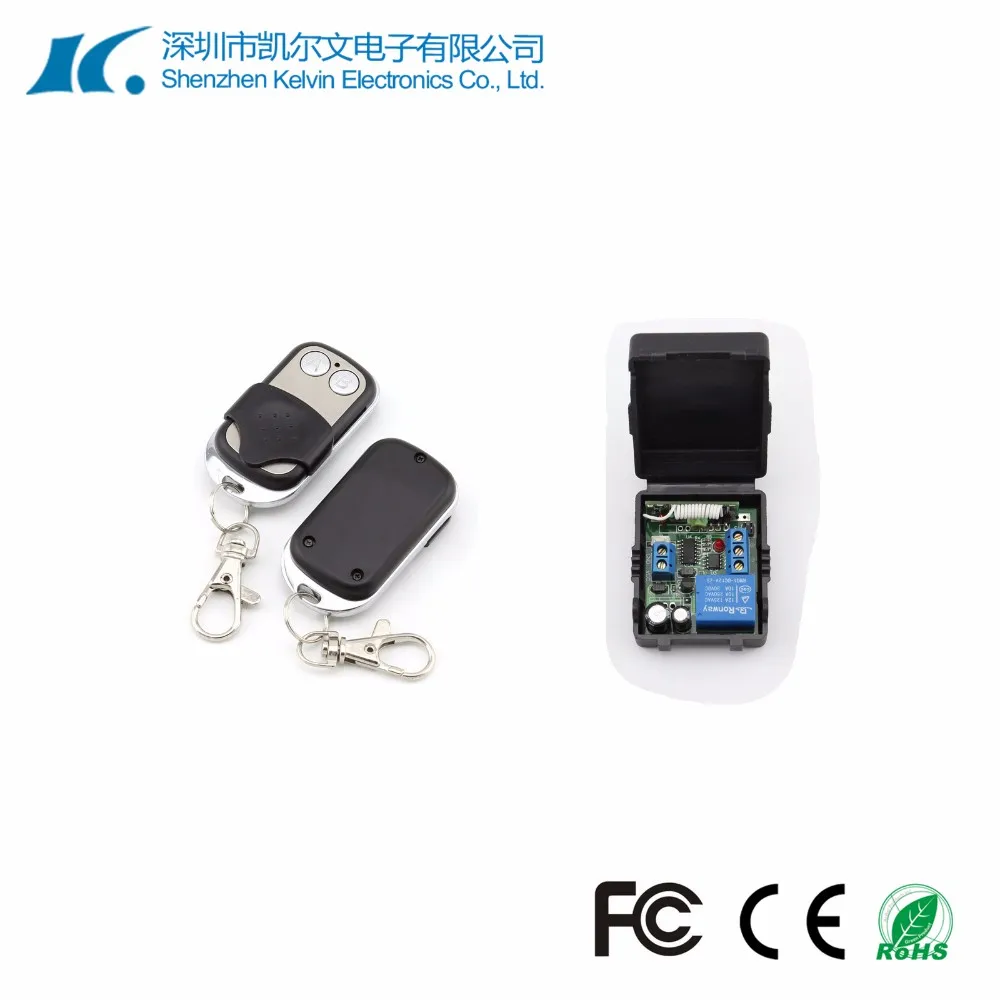

Universal rf remote control transmitter receiver (KL-K103X)

  • 1 - 19 Pieces
    $2.50
  • 20 - 199 Pieces
    $2.00
  • 200 - 999 Pieces
    $1.80
  • >=1000 Pieces
    $1.55
Use:
Universal
Samples:
Shipping:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Pieces) 1 - 1000 1001 - 5000 5001 - 10000 >10000
Est. Time(days) 3 5 10 Negotiable
Customization:
Customized logo (Min. Order: 500 Pieces)
Customized packaging (Min. Order: 500 Pieces)

More

Graphic customization (Min. Order: 500 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Brand Name:
KELVIN
Model Number:
KL-K103X
Certification:
ce
Color:
Black
Place of Origin:
Guangdong, China
Material:
plastic
Code:
Learning Code, Learning code hs1527
Function:
LED Touch Control, Digital LED Display, Privacy, Heat Adjustment, Auto shut-off, Heat Control, LED indicator light, Timer Function, Anti shock, Single Service, Automatic, Single Serve
Working Voltage:
DC12V
Maximum Operating current:
7A
Size:
40 * 40 * 15 MM
Receive Frequency:
266MHZ-433MHz
Receiving Sensitivity:
-95 DB
Product Attribute:
Wireless Receiver
Usage:
Garage Door Openers
Certificate:
FCC CE ROHS
Product name:
rf remote control transmitter receiver
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week Wireless Receiver
Packaging & Delivery
Packaging Details
KELVIN standard ,Customized package is optional
Port
Shenzhen, Hongkong
Lead Time :
Quantity(Pieces) 1 - 1000 1001 - 5000 5001 - 10000 >10000
Est. Time(days) 3 5 10 To be negotiated
Product Description

It is Widely used in motorcycles, automobiles anti-theft anti-lost personal alarm products, home security system products, etc.

Encoding Type: Fixed code,Learning code
Encoding Mode: Fixed code by soldering
Working Mode : Non-lock. self-locking, inter-locking
Parameter
Input
DC 12V (DC9V, 24V is customized)
Channel
1
Current
8mA
Frequency
433MHz / 315MHz (other frequency is customized)
Receiver Sensitivity
-103dBm
Decoding Type
Learning Code(EV1527) / Fixed Code(2262)
Output Mode
Switching Signal (Dry Contact)
Working Mode
Momentary / Toggle / Latching
Max Load of Relay Contact
7A

Operation Method:

1. Match code:
Hold learning button and learning indicator light blinks, then press a buttons of remote control, if indicator lights flashes 3
times, match code successfully. Maximum 20 remote controls can be matched.
Pls note that KL-K103X can learn any data code. It means it can be controlled by whichever button you press on the remote while
matching.

2. Delete code:

Hold learning button till the indicator LED lights and then off, delete successfully.
3.Set working mode:
S1 & S2 program the sequence as follows:
Jumper on S1→ Toggle
Jumper on S2→ Latching
No Jumper on S1 &S2→ Momentary

Working Mode:

1. Momentary: Press remote button A, the corresponding relay on the receiver is on; release button A, the relay is off, the same
as others.
2. Toggle: Press remote button A, the corresponding relay on the receiver is on; press button A again, the relay is off, the same
as others.
3. Latching: Press remote button A, the relay A is on, B is off; press button B, the replay B is on, A is off.

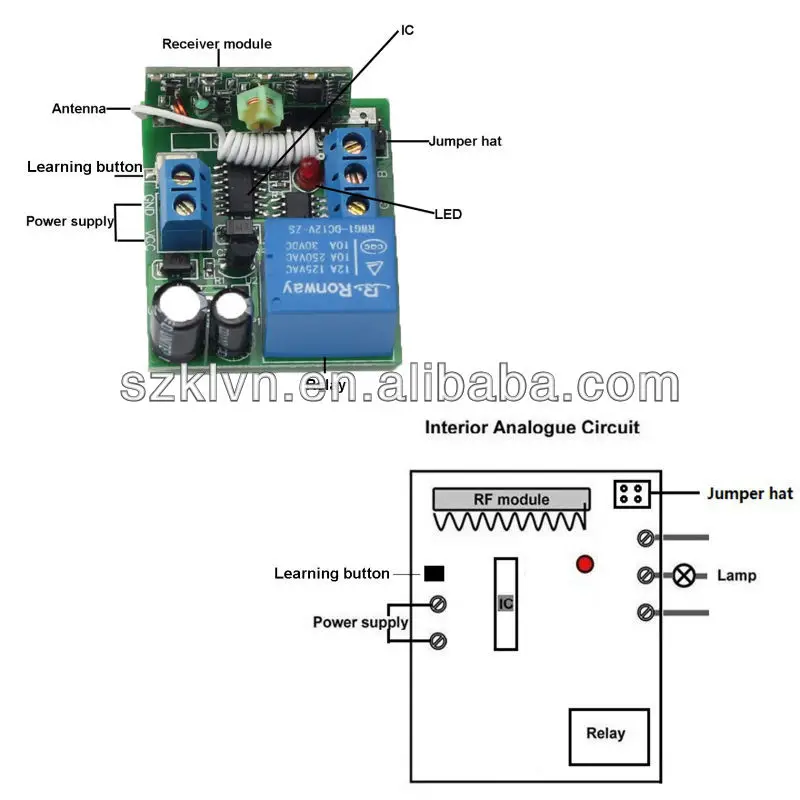

Wiring Way & Diagram:
B=Normally Closed, G=Common, K=Normally Open.
Details Images
Related Products
Packing&Shipping
Company Introduction
FAQ

What do you want to know?

Q1: How long distance can this controller can do ?
A1: The distance is depend on the range of remote you use, ours general remote is about 30-800m.

Q2: How long if we use in city ?
A2: The building is the most effect factor for distance and our tested
base on open space without interference,subject to actual on the spot.

Q3: How many pieces remote can work at same controller?
A3: Most of our controller can save 20pcs remotes.

Q4: Whether it can be copied by duplicator ,it's safety
A4: We didn't find any one can copy ours until now ,don't worry.

Q5: Can we change supply voltage like 24Vdc ?
A5: Of course ,we support this service.

Q6: Can you print our model number on PCB even logo on enclosure?
A6: Yes and we offer OEM/ODM if you need .We're not only manufacturer but also have R&D who can finish these work well.

Q7: What's modulation ? ASK or FSK ?
A7: ASK and FSK are the most popular frequency modulation schemes. Our most products are ASK. Sometimes, we determine which should
be used based on customer's demand.

Q8: Can we use remote control which made by other manufacturer ?
A8: We don't suggest to do so because our's code is private.
